Carl Stahl TECHNOCABLES

LP pulley without bearing

LP-Pulleys utilize a high-strength moulded nylon containing finely divided particles of molybdenum disulfide as solid lubricant:

  • Light weight
  • Corrosion resistant
  • Self lubricating
  • High breaking load
  • Quiet and smooth operation
  • Low thermal expansion coefficient
  • Little absorption of water
  • High impact resistance
  • Low coefficient of friction
  • Low vibration

The improved tensile strength of the lubricated polyamide allows higher loads than thermoplastic. If the material is temporarily subjected to heavier loads, it regains its original shape.

In comparison to other pulleys, the LP-Pulley has an up to 4.5 times longer working life.

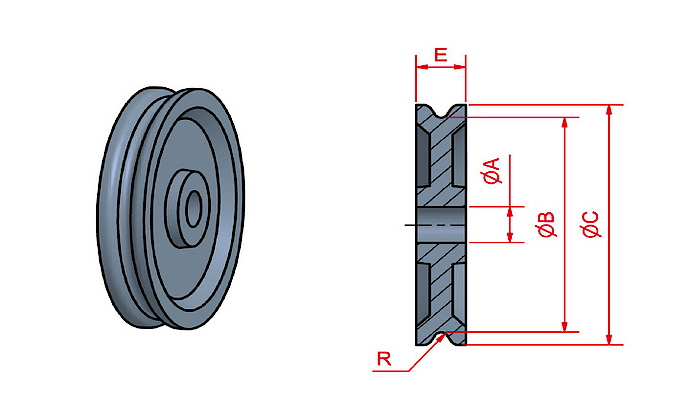

for cable Ø up to*
mm
A
± 0,01
mm
B
± 0,30
mm
C
± 0,50
mm
E
± 0,30
mm
R
mm
Capacity**
N
Weight
kg/100 pcs.
mm
old Item No.new Item No.
2,00 - 2,5010,056,063,56,41,38801,956LPB05610UM000008
3,00 - 5,0012,063,576,011,22,835503,210LPB06312UM000009
3,00 - 5,0012,076,089,011,22,835503,880LPB07612UM000010
5,00 - 6,0018,098,5114,512,73,562208,410LPB09818UM000011
5,00 - 6,0018,0111,0127,012,73,5622010,090LPB11118UM000012
6,00 - 8,0020,0133,5152,515,84,3711016,580LPB13320UM000013

*When choosing a suitable wire rope please see the advice given on starting page of Pulleys.

**The load capacity describes the suitable load in static use. For a long working life we recommend a load less than 10% of the load capacity.
