Carl Stahl TECHNOCABLES

Wire rope suspension - coupler ceiling attachment

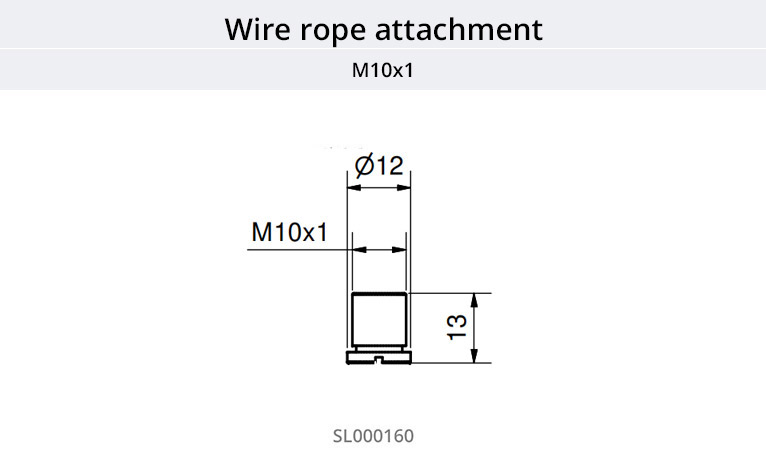

Wire rope attachment M10x1
Series 1018

material: polished brass
surface: nickel-plated

length: 13 mm
collar diameter: 12 mm
straight run out: Ø 2 mm
male thread: M10x1
thread length: 11 mm

Suitable for ceiling attachment: SL000159

Art. No.: SL000160
Wire rope attachment M10x1
Series 1018

material: polished brass
surface: nickel-plated

length: 13 mm
collar diameter: 12 mm
straight run out: Ø 2 mm
male thread: M10x1
thread length: 11 mm

Suitable for ceiling attachment: SL000159

Art. No.: SL000160

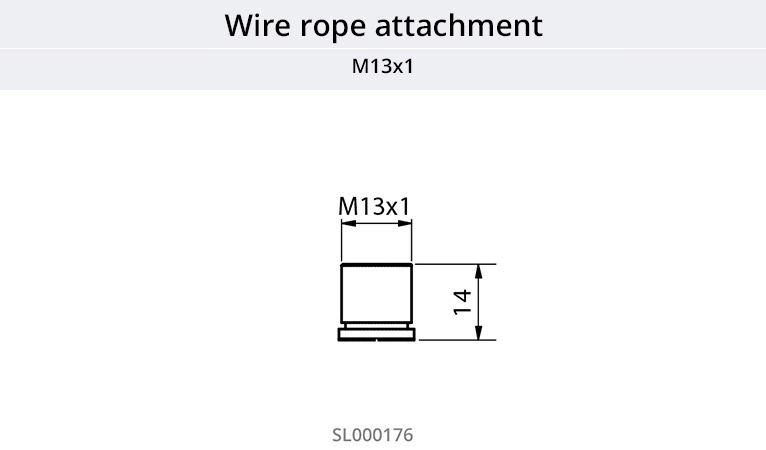

Wire rope attachment M13x1
Series 1018

material: polished brass
surface: nickel-plated

length: 14 mm
collar diameter: 16 mm
straight run out: Ø 2 mm
outer diameter: M13x1
thread length: 12 mm

Suitable for ceiling attachment: SL000175

Art. No.: SL000176
Wire rope attachment M13x1
Series 1018

material: polished brass
surface: nickel-plated

length: 14 mm
collar diameter: 16 mm
straight run out: Ø 2 mm
outer diameter: M13x1
thread length: 12 mm

Suitable for ceiling attachment: SL000175

Art. No.: SL000176

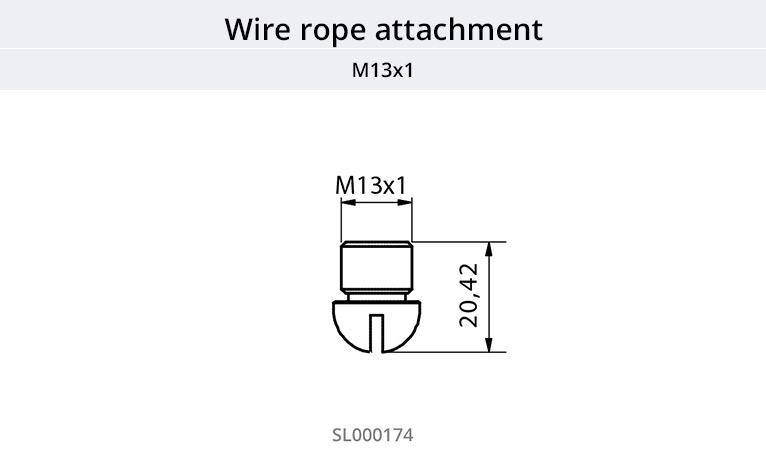

Wire rope attachment M13x1
Series 1018

for sloping ceilings, swiveling about 180°
material: polished brass
surface: nickel-plated

length: 20 mm
collar diameter: 16 mm
straight run out: Ø 2.3 mm
outer diameter: M13x1
thread length: 11 mm

Suitable for ceiling attachment: SL000175

Art. No.: SL000174
Wire rope attachment M13x1
Series 1018

for sloping ceilings, swiveling about 180°
material: polished brass
surface: nickel-plated

length: 20 mm
collar diameter: 16 mm
straight run out: Ø 2.3 mm
outer diameter: M13x1
thread length: 11 mm

Suitable for ceiling attachment: SL000175

Art. No.: SL000174

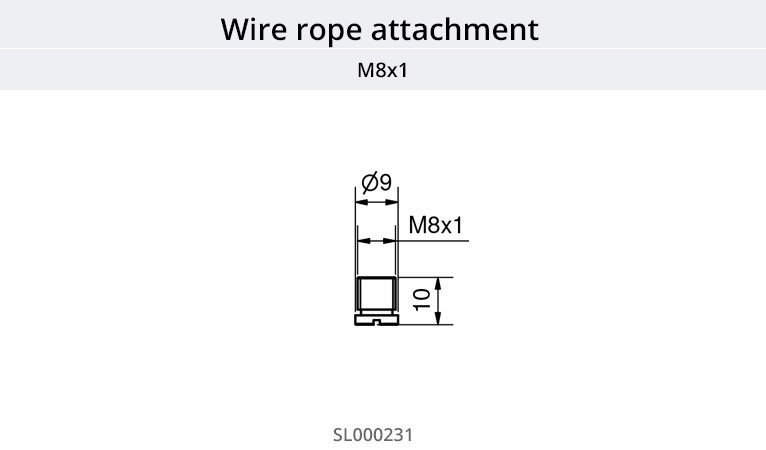

Wire rope attachment M8x1
Series 1012

material: polished brass
surface: nickel-plated

length: 10 mm
collar diameter: 9 mm
straight run out: Ø 2 mm
outer diameter: M8x1
thread length: 8 mm

Suitable for ceiling attachment: SL000230

Art. No.: SL000231
Wire rope attachment M8x1
Series 1012

material: polished brass
surface: nickel-plated

length: 10 mm
collar diameter: 9 mm
straight run out: Ø 2 mm
outer diameter: M8x1
thread length: 8 mm

Suitable for ceiling attachment: SL000230

Art. No.: SL000231

Ceiling wire rope hanger systems in combination with cable gripper

A wire is threaded into the coupler and then screwed into a ceiling fixture. In combination with a ceiling mount attachment, the wire rope holder is a secure fastening for objects such as a hanging lamp or pendant lamp. It serves as a fixed attachment point for the rope suspension on the ceiling. We offer the complete hardware, e.g. for the lighting suspension or sets for ceiling hanging. Suitable lighting suspension cable / suspension cables
