Stranded wire from Carl Stahl Technocables
Wire strands are made from individual high-strength wires that are laid spirally around a core. They are used as thin stranded rope or as a basis for stranding into wire ropes. Steel wire strands are available from stock in various thicknesses in very thin dimensions from 0.075 mm - 5.00 mm. As a manufacturer and supplier of strands, we can also supply other versions if required.
stainless steelgalvanized steeltungstencopperNitinol

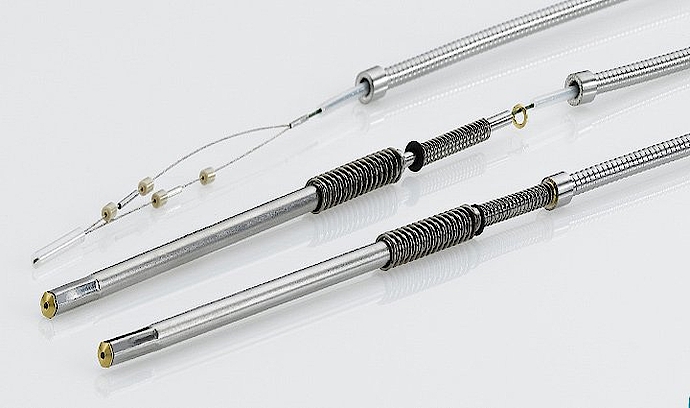

Does your application require assembly? Our large selection of components makes Carl Stahl Technocables your partner for ready-to-install cable systems.
Do you need support?
Strands made of galvanized steel wire, stainless steel wire or tungsten wire
The wire for strands and ropes from Carl Stahl Technocables is made of galvanised steel, stainless steel, tungsten, copper or special materials. Galvanised wire offers sufficient corrosion protection for many applications. If the strands are used in highly corrosive media, we recommend stainless steel. Tungsten is also highly resistant to corrosion and has special properties that are required for certain applications. Depending on the application, we will be happy to advise you on the selection of a suitable stranded wire material.
Material: Stainless steel, tungsten
Construction: 1 x 7
Diameter ø: from 0,075 to 0,75 mm
| Nom. Dia in mm | Min. break. Load in N | Weight in kg/1000 m | old Item No. | new Item No. |
|---|---|---|---|---|
| 0,09 | 7 | 0,040 | CG 007009 | LI000001 |
| 0,12 | 13 | 0,073 | CG 007012 | LI000002 |
| 0,15 | 20 | 0,113 | CG 007015 | LI000003 |
| 0,18 | 30 | 0,163 | CG 007018 | LI000004 |
| 0,21 | 41 | 0,210 | CG 007021 | LI000005 |
| 0,24 | 53 | 0,280 | CG 007024 | LI000006 |
| 0,27 | 70 | 0,360 | CG 007027 | LI000007 |
| 0,30 | 85 | 0,440 | CG 007030 | LI000008 |
| 0,33 | 100 | 0,540 | CG 007033 | LI000009 |
| 0,36 | 120 | 0,640 | CG 007036 | LI000010 |
| 0,39 | 140 | 0,750 | CG 007039 | LI000011 |
| 0,45 | 200 | 1,000 | CG 007045 | LI000012 |
| 0,51 | 280 | 1,250 | CG 007051 | LI000013 |
| 0,57 | 350 | 1,600 | CG 007057 | LI000014 |
| 0,60 | 400 | 1,800 | CG 007060 | LI000015 |
| 0,69 | 520 | 2,400 | CG 007069 | LI000016 |
| 0,75 | 600 | 2,800 | CG 007075 | LI000017 |
| Nom. Dia in mm | Min. break. Load in N | Weight in kg/1000 m | Colour | Item No. |
|---|---|---|---|---|
| 0,075 | 11 | 0,07 | black | LI000468 |
| 0,215 | 86 | 0,53 | black | LI000464 |
| 0,24 | 110 | 0,68 | black | LI000466 |
| Other diameters are possible on request. Contact us for more information. | ||||
Material: Stainless steel

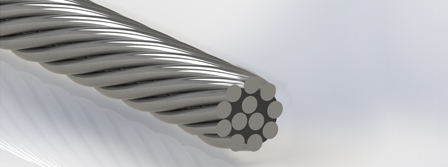

Construction: 1 x 12
Diameter ø: from 0,20 to 0,80 mm
| Nom. Dia in mm | Min. break. Load in N | Weight in kg/1000 m | old Item No. | new Item No. |
|---|---|---|---|---|
| 0,20 | 43 | 0,180 | CG 012020 | LI000018¹ |
| 0,24 | 62 | 0,260 | CG 012024 | LI000019¹ |
| 0,28 | 84 | 0,350 | CG 012028 | LI000020¹ |
| 0,32 | 111 | 0,460 | CG 012032 | LI000021¹ |
| 0,36 | 140 | 0,580 | CG 012036 | LI000022¹ |
| 0,40 | 173 | 0,720 | CG 012040 | LI000023¹ |
| 0,44 | 209 | 0,870 | CG 012044 | LI000024¹ |
| 0,48 | 248 | 1,030 | CG 012048 | LI000025¹ |
| 0,52 | 291 | 1,210 | CG 012052 | LI000026¹ |
| 0,56 | 338 | 1,400 | CG 012056 | LI000027¹ |
| 0,60 | 387 | 1,600 | CG 012060 | LI000028¹ |
| 0,68 | 499 | 2,100 | CG 012068 | LI000029¹ |
| 0,80 | 691 | 2,900 | CG 012080 | LI000030¹ |
Material: Stainless steel, galvanized steel, tungsten

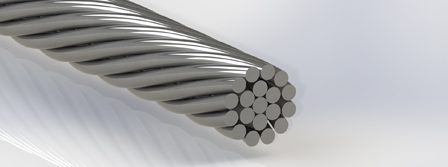

Construction: 1 x 19
Diameter ø: from 0,125 to 5,00 mm
| Nom. Dia in mm | Min. break. Load in N | Weight in kg/1000 m | old Item No. | new Item No. |
|---|---|---|---|---|
| 0,15 | 25 | 0,110 | CG 019015 | LI000031 |
| 0,20 | 44 | 0,200 | CG 019020 | LI000032 |
| 0,25 | 69 | 0,300 | CG 019025 | LI000033 |
| 0,30 | 98 | 0,440 | CG 019030 | LI000034 |
| 0,35 | 135 | 0,600 | CG 019035 | LI000035 |
| 0,40 | 177 | 0,780 | CG 019040 | LI000036 |
| 0,45 | 224 | 0,970 | CG 019045 | LI000037 |
| 0,50 | 275 | 1,200 | CG 019050 | LI000038 |
| 0,55 | 330 | 1,450 | CG 019055 | LI000039 |
| 0,60 | 392 | 1,750 | CG 019060 | LI000040 |
| 0,65 | 461 | 2,070 | CG 019065 | LI000041 |
| 0,75 | 618 | 2,760 | CG 019075 | LI000042 |
| 0,85 | 795 | 3,500 | CG 019085 | LI000043 |
| 1,00 | 1079 | 4,900 | CG 019100 | LI000044 |
| 1,25 | 1300 | 7,600 | 01531012 | LI000045² |
| 1,50 | 1860 | 11,100 | 01531015 | LI000046² |
| 2,00 | 3300 | 19,800 | 01531020 | LI000047² |
| 2,50 | 5150 | 31,000 | 01531025 | LI000048² |
| 3,00 | 7420 | 44,600 | 01531030 | LI000049² |
| 3,50 | 10100 | 60,700 | 01531035 | on request² |
| 4,00 | 13200 | 79,300 | 01531040 | LI000050² |
| 5,00 | 20300 | 124,000 | 01531050 | LI000051² |
| Nom. Dia in mm | Min. break. Load in N | Weight in kg/1000 m | old Item No. | new Item No. |
|---|---|---|---|---|
| 1,0 | 930 | 4,95 | 15322010 | LI000052 |
| 1,5 | 2090 | 11,10 | 15322015 | LI000053 |
| 2,0 | 3720 | 19,80 | 15322020 | LI000054 |
| 2,5 | 5810 | 31,00 | 15322025 | LI000055 |
| 3,0 | 8370 | 44,60 | 15322030 | LI000056 |
| 3,5 | 11400 | 60,70 | 15322035 | LI000192 |
| 4,0 | 14900 | 79,30 | 15322040 | LI000057 |
| 5,0 | 23200 | 124,00 | 15322050 | LI000058 |
| Nom. Dia in mm | Min. break. Load in N | Weight in kg/1000 m | Colour | Item No. |
|---|---|---|---|---|
| 0,125 | 29,5 | 0,18 | black | LI000471 |
| 0,35 | 230 | 1,43 | schwarz | on request |
| 0,38 | 260 | 1,63 | black | on request |
| Other diameters are possible on request. Contact us for more information. | ||||
Unless otherwise specified, all strands and ropes are manufactured with a tensile strength of 1770 N/mm².
¹ This and other special constructions are available on request. Minimum production quantities apply.
² Tensile strength 1570 N/mm².
³ Available standard material AISI 304.

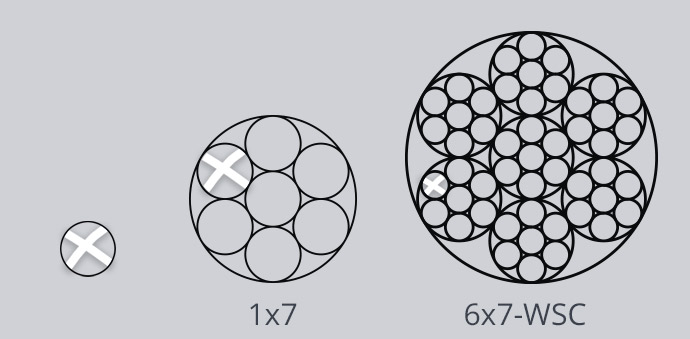

Structure wire - strand - rope
A wire rope consists of several strands of wire. A wire strand consists of several wires. The strand shown in the example consists of 7 wires (1x7), the wire rope (6x7-WSC) consists of 7 strands with 7 wires each, i.e. 49 individual wires. The number of wires and the material can vary and influence the strand diameter, the minimum breaking strength of the strand and the weight.
